Tubing Power Tong(Inner curved cam clamp) from China manufacturer

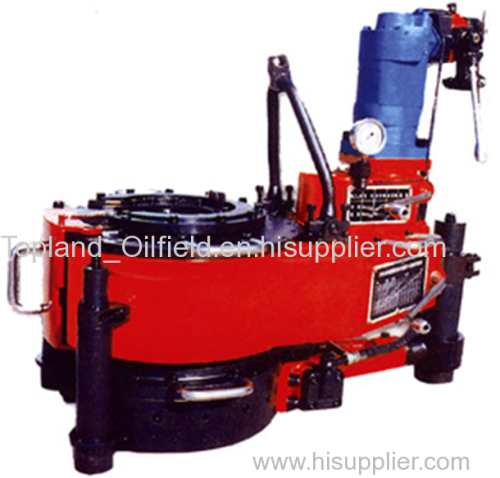

Tubing Power Tong(Inner curved cam clamp)

Price:	1.0 USD
Payment Terms:	T/T
Place of Origin:	Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: No-1

Packing: Standard Packing

Means of Transport: Ocean,Land,Air

Delivery Date: 30~60 days

Tubing power tong (Inner curved cam clamp) is used for quick make-up/ break-out in well service operations. The tong is equipped with hydraulic backu

The tongs have the following features:

Model		XQ89/3YB,3YC,3YF	XQ89/3YE	XQ114/6YB	XQ140/12YA
Pipe Size Range Of Master Tong	mm	ɸ60-89	ɸ73-89	ɸ73-114	ɸ73-140
Pipe Size Range Of Master Tong	in	2 3/8"-3 1/2"	2 7/8"-3 1/2"	2 3/8"-4 1/2"	2 7/8"-5 1/2"
Pipe Size Rang Of Backup Tong	mm	ɸ60-114	ɸ89-114	ɸ60-114.5	ɸ89-156
Pipe Size Rang Of Backup Tong	in	2 3/8"- 4 1/2"	3 1/2"-4 1/2"	3 1/2"-5 1/8"	3 7/2"-6 1/8"
High Gear Rated Torque	kn.m	1.1	3	1.5	2.6
High Gear Rated Torque	ft.lbf	811	2213	1106	1918
Low Gear Rated Torque	kn.m	3	3	6	12
Low Gear Rated Torque	ft.lbf	2213	2213	4425	8851
High Gear Rated Speed	r/min	90	28	85	72
Low Gear Rated Speed	r/min	30	28	20	14
Rated Operation Pressure	Mpa	10	10	11	12
Rated Operation Pressure	Psi	1450	1450	1595	1740
Max. Flow	L/min	80	90	100	120
Max. Flow	gpm	21	24	26	32
Overall Dimension L X W X H	MM	650 x 430 x 550	740 x 430 x 800	750 x 500 x 600	1024 x 582 x 539
Overall Dimension L X W X H	IN	26 x 17 x 22	29 x 17 x 32	30 x 20 x 24	41 x 23 x 22
Weight Including Backup Tong	Kg	158	182	220	480
Weight Including Backup Tong	lb	348	401	485	1057

Remark:

1. To clamp the 2 3/8" tubing, special dies must be ordered for Model XQ 89/3YB, 3YC;

2. Advantage of Model XQ89/3YE; Low speed, rated speed is 28 rpm. Dies of backup tong can clamp the underside of tubing coupling, so as to reduce distortion of tubing coupling to prevent conglutination of thread.
